M.G.M._motori_elettrici M.G.M. motori elettrici S.p.A SM 71 A8 — Product Overview

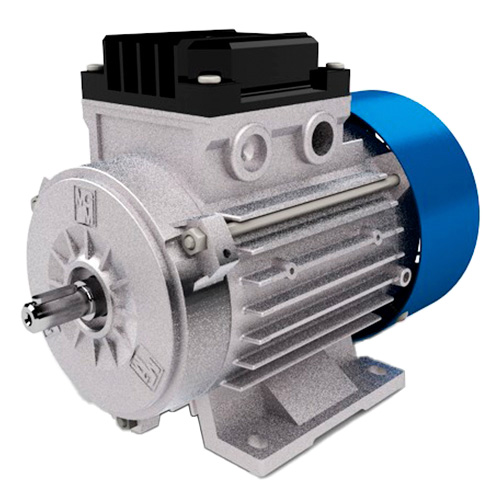

The M.G.M._motori_elettrici M.G.M. motori elettrici S.p.A SM 71 A8 is a three-phase asynchronous squirrel-cage induction motor designed for demanding industrial applications. It delivers 0.08 kW of rated power at 750 RPM , built on IEC frame 71.
With IE1 energy efficiency classification, this motor delivers superior performance while meeting current EU MEPS (Minimum Energy Performance Standards) under EU regulation 2019/1781.
- IP55 degree of protection — dust-tight and jet-water resistant
- Insulation Class F, thermal protection class B — suitable for ambient temperatures up to +40°C
- Duty cycle S1 (continuous operation)
- Cooling method IC411 (totally enclosed fan-cooled, TEFC)
- CE marked, RoHS compliant, meets IEC/EN 60034
- Country of manufacture: Italy
Available Mounting Configurations
The M.G.M. motori elettrici S.p.A SM 71 A8 is available in 3 mounting configurations: B14, B3, B5. Each configuration has its own article number, enabling direct procurement without substitution errors.
Technical Specifications
| Rated Power | 0.08 kW |
| Number of Poles | 8 |
| IEC Frame Size | 71 mm |
| Rated Speed | 750 RPM |
| Energy Efficiency Class | IE1 |
| Rated Current (400V) | 0.6 A |
| Rated Torque | 1.16 Nm |
| Full Load Efficiency | 42.9 % |
| Efficiency at 75% Load | 38.6 % |
| Efficiency at 50% Load | 30.7 % |
| Power Factor (cos φ) | 0.53 |
| Weight | 6.5 kg |
| Supply Voltage | 400V / 690V (Y/Δ) |
| Frequency | 50 / 60 Hz |
| Protection Class | IP55 |
| Insulation Class | Class F |
| Duty Cycle | S1 (Continuous) |
| Cooling Method | IC411 (TEFC) |
| Standards | IEC/EN 60034, CE |
| Brand | M.G.M._motori_elettrici |
| Country of Origin | Italy |
| Article INDASTRA | SM 71 A8-IE1-0,08-660 |
Available Mounting Configurations
Each configuration is a distinct article. Click to open the dedicated product page with full documentation.
| Article | Mounting | Price | Delivery | Status | |
|---|---|---|---|---|---|
| SM 71 A8-IE1-0,08-660-B14 | B14 | On request | On request | In stock | |
| SM 71 A8-IE1-0,08-660-B3 | B3 | On request | On request | In stock | |
| SM 71 A8-IE1-0,08-660-B5 | B5 | On request | On request | In stock |
Product Documentation
Industrial Applications
Typical use-cases where M.G.M._motori_elettrici M.G.M. motori elettrici S.p.A SM 71 A8 is deployed:
Analogs to M.G.M._motori_elettrici M.G.M. motori elettrici S.p.A SM 71 A8
20 compatible replacementsFunctionally equivalent motors — same frame, power, and pole count from alternative manufacturers.
| Parameter |
M.G.M._motori_elettrici
M.G.M. motori elettrici S.p.A SM 71 A8
0.08 kW · 750 RPM
Current
|
Cantoni motor
Cantoni motor 2SIE 71-8B
0.12 kW · 750 RPM
40% match
|
Cantoni motor
Cantoni motor 2SIEK 71-8B
0.12 kW · 750 RPM
40% match
|
Cantoni motor
Cantoni motor 2SIEK 71-8B2
0.12 kW · 750 RPM
40% match
|
ELVEM
ELVEM 6T1 71A8
0.09 kW · 750 RPM
60% match
|
ELVEM
ELVEM 6T1 71B8
0.12 kW · 750 RPM
60% match
|
Lammers
Lammers 1TZ9002-0CD2
0.09 kW · 750 RPM
60% match
|
Lammers
Lammers 1TZ9002-0CD3
0.12 kW · 750 RPM
60% match
|
Motive
Motive 71B-8
0.13 kW · 750 RPM
40% match
|
GAMAK
GAMAK AGM 71 M 8a
0.09 kW · 750 RPM
60% match
|
GAMAK
GAMAK AGM 71 M 8b
0.12 kW · 750 RPM
60% match
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | M.G.M._motori_elettrici | Cantoni motor | Cantoni motor | Cantoni motor | ELVEM | ELVEM | Lammers | Lammers | Motive | GAMAK | GAMAK |
| Part Number | SM 71 A8-IE1-0,08-660 |
2SIE 71-8B-IE3-0,12-670 | 2SIEK 71-8B-IE3-0,12-670 | 2SIEK 71-8B2-IE3-0,12-670 | 6T1 71A8-IE1-0,09-680 | 6T1 71B8-IE1-0,12-690 | 71 M-8-IE1-0,09-635 | 71 M-8-IE1-0,12-625 | 71B-8-IE2-0,13-651 | AGM 71 M 8a-IE1-0,09-690 | AGM 71 M 8b-IE1-0,12-670 |
| Power (kW) | 0.08 kW | 0.12 kW | 0.12 kW | 0.12 kW | 0.09 kW | 0.12 kW | 0.09 kW | 0.12 kW | 0.13 kW | 0.09 kW | 0.12 kW |
| Poles | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Rated Speed | 750 RPM | 750 RPM | 750 RPM | 750 RPM | 750 RPM | 750 RPM | 750 RPM | 750 RPM | 750 RPM | 750 RPM | 750 RPM |
| Frame Size | 71 | 71 | 71 | 71 | 71 | 71 | 71 | 71 | 71 | 71 | 71 |
| Efficiency | IE1 | IE3 | IE3 | IE3 | IE1 | IE1 | IE1 | IE1 | IE2 | IE1 | IE1 |
| Country | Italy | — | — | — | — | — | — | — | — | — | — |
| Price | On request | On request | On request | On request | On request | On request | On request | On request | On request | On request | On request |
| YOU ARE HERE |
More from M.G.M._motori_elettrici View all
FAQ — M.G.M._motori_elettrici M.G.M. motori elettrici S.p.A SM 71 A8
The M.G.M._motori_elettrici M.G.M. motori elettrici S.p.A SM 71 A8 belongs to efficiency class IE1 as per IEC 60034-30-1.
The M.G.M._motori_elettrici M.G.M. motori elettrici S.p.A SM 71 A8 is available in the following mounting configurations: B14, B3, B5. Each variant has its own article number and may have different lead times.
Delivery to Germany, France, Italy and other EU countries typically takes 5–15 business days from stock. Contact us for exact lead time for this specific model.
Yes. M.G.M._motori_elettrici electric motors comply with EU directives including CE marking, RoHS, and REACH regulations. All motors meet IEC/EN 60034 standards. Documentation is available upon request.
Yes — 20 compatible analog model(s) are listed on this page. They share the same frame size, pole count, and 0.08 kW power rating. Use our analog comparison table below for a detailed spec-by-spec comparison.
INDASTRA accepts international bank transfer (SWIFT/SEPA), Letters of Credit (L/C), and advance payment. All prices are in EUR excluding VAT. A formal invoice is provided for every order.
