ABB ABB M3AA 56A 4 — Product Overview
The ABB ABB M3AA 56A 4 is a three-phase asynchronous squirrel-cage induction motor designed for demanding industrial applications. It delivers 0.06 kW of rated power at 1500 RPM , built on IEC frame 56.
With IE2 energy efficiency classification, this motor delivers superior performance while meeting current EU MEPS (Minimum Energy Performance Standards) under EU regulation 2019/1781.
- IP55 degree of protection — dust-tight and jet-water resistant
- Insulation Class F, thermal protection class B — suitable for ambient temperatures up to +40°C
- Duty cycle S1 (continuous operation)
- Cooling method IC411 (totally enclosed fan-cooled, TEFC)
- CE marked, RoHS compliant, meets IEC/EN 60034
- Country of manufacture: Switzerland
Available Mounting Configurations
The ABB M3AA 56A 4 is available in 3 mounting configurations: B3, B35, B5. Each configuration has its own article number, enabling direct procurement without substitution errors.
Technical Specifications
| Rated Power | 0.06 kW |
| Number of Poles | 4 |
| IEC Frame Size | 56 mm |
| Rated Speed | 1500 RPM |
| Energy Efficiency Class | IE2 |
| Rated Current (400V) | 0.3 A |
| Rated Torque | 0.41 Nm |
| Full Load Efficiency | 52.8 % |
| Efficiency at 75% Load | 49.6 % |
| Efficiency at 50% Load | 40.8 % |
| Power Factor (cos φ) | 0.54 |
| Weight | 2.9 kg |
| Supply Voltage | 400V / 690V (Y/Δ) |
| Frequency | 50 / 60 Hz |
| Protection Class | IP55 |
| Insulation Class | Class F |
| Duty Cycle | S1 (Continuous) |
| Cooling Method | IC411 (TEFC) |
| Standards | IEC/EN 60034, CE |
| Brand | ABB |
| Country of Origin | Switzerland |
| Article INDASTRA | M3AA 56A 4-IE2-0,06-1390 |
Available Mounting Configurations
Each configuration is a distinct article. Click to open the dedicated product page with full documentation.
| Article | Mounting | Price | Delivery | Status | |
|---|---|---|---|---|---|
| M3AA 56A 4-IE2-0,06-1390-B3 | B3 | On request | On request | In stock | |
| M3AA 56A 4-IE2-0,06-1390-B35 | B35 | On request | On request | In stock | |
| M3AA 56A 4-IE2-0,06-1390-B5 | B5 | On request | On request | In stock |
Product Documentation
Industrial Applications
Typical use-cases where ABB ABB M3AA 56A 4 is deployed:
Analogs to ABB ABB M3AA 56A 4
20 compatible replacementsFunctionally equivalent motors — same frame, power, and pole count from alternative manufacturers.
| Parameter |
ABB
ABB M3AA 56A 4
0.06 kW · 1500 RPM
Current
|
Motive
Motive 56B-4
0.09 kW · 1500 RPM
60% match
|
ELVEM
ELVEM 6T1 56A4
0.06 kW · 1500 RPM
80% match
|
ELVEM
ELVEM 6T1 56B4
0.09 kW · 1500 RPM
40% match
|
ELVEM
ELVEM 6T1 56C4
0.12 kW · 1500 RPM
40% match
|
GAMAK
GAMAK AGM 56 M 4a
0.06 kW · 1500 RPM
80% match
|
GAMAK
GAMAK AGM 56 M 4b
0.09 kW · 1500 RPM
40% match
|
Bonfiglioli
Bonfiglioli BN 56A 4
0.06 kW · 1500 RPM
80% match
|
Bonfiglioli
Bonfiglioli BN 56B 4
0.09 kW · 1500 RPM
40% match
|
Chiravalli
Chiravalli CHT 56B4
0.09 kW · 1500 RPM
40% match
|

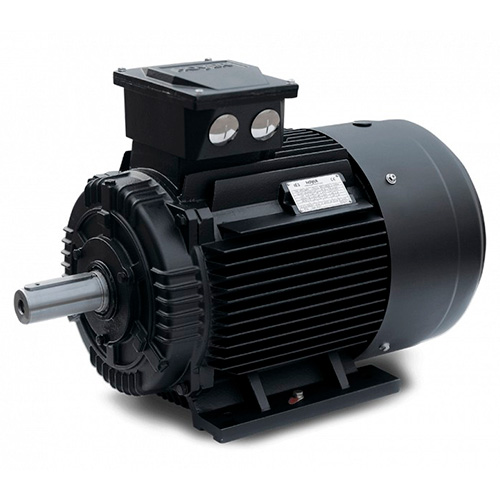

Hoyer
Hoyer HMA2 56 1-4
0.06 kW · 1500 RPM
100% match
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | ABB | Motive | ELVEM | ELVEM | ELVEM | GAMAK | GAMAK | Bonfiglioli | Bonfiglioli | Chiravalli | Hoyer |
| Part Number | M3AA 56A 4-IE2-0,06-1390 |
56B-4-IE2-0,09-1346 | 6T1 56A4-IE1-0,06-1320 | 6T1 56B4-IE1-0,09-1320 | 6T1 56C4-IE1-0,12-1320 | AGM 56 M 4a-IE1-0,06-1370 | AGM 56 M 4b-IE1-0,09-1375 | BN 56A 4-IE1-0,06-1340 | BN 56B 4-IE1-0,09-1350 | CHT 56B4-IE1-0,09-1400 | HMA2 56 1-4-0,06-1380 |
| Power (kW) | 0.06 kW | 0.09 kW | 0.06 kW | 0.09 kW | 0.12 kW | 0.06 kW | 0.09 kW | 0.06 kW | 0.09 kW | 0.09 kW | 0.06 kW |
| Poles | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Rated Speed | 1500 RPM | 1500 RPM | 1500 RPM | 1500 RPM | 1500 RPM | 1500 RPM | 1500 RPM | 1500 RPM | 1500 RPM | 1500 RPM | 1500 RPM |
| Frame Size | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 |
| Efficiency | IE2 | IE2 | IE1 | IE1 | IE1 | IE1 | IE1 | IE1 | IE1 | IE1 | IE2 |
| Country | Switzerland | — | — | — | — | — | — | — | — | — | — |
| Price | On request | On request | On request | On request | On request | On request | On request | On request | On request | On request | On request |
| YOU ARE HERE |
More from ABB View all
FAQ — ABB ABB M3AA 56A 4
The ABB ABB M3AA 56A 4 belongs to efficiency class IE2 as per IEC 60034-30-1. IE2 (High Efficiency) motors offer significant energy savings over standard IE1 motors.
The ABB ABB M3AA 56A 4 is available in the following mounting configurations: B3, B35, B5. Each variant has its own article number and may have different lead times.
Delivery to Germany, France, Italy and other EU countries typically takes 5–15 business days from stock. Contact us for exact lead time for this specific model.
Yes. ABB electric motors comply with EU directives including CE marking, RoHS, and REACH regulations. All motors meet IEC/EN 60034 standards. Documentation is available upon request.
Yes — 20 compatible analog model(s) are listed on this page. They share the same frame size, pole count, and 0.06 kW power rating. Use our analog comparison table below for a detailed spec-by-spec comparison.
